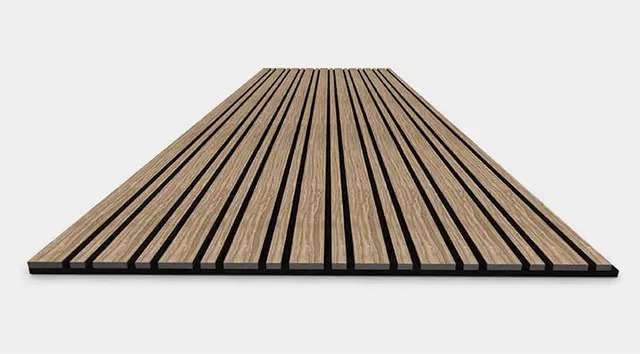

Large and Small Wooden Veneer Slat Width Acoustic Slat Panels
| Quantity: | |
|---|---|

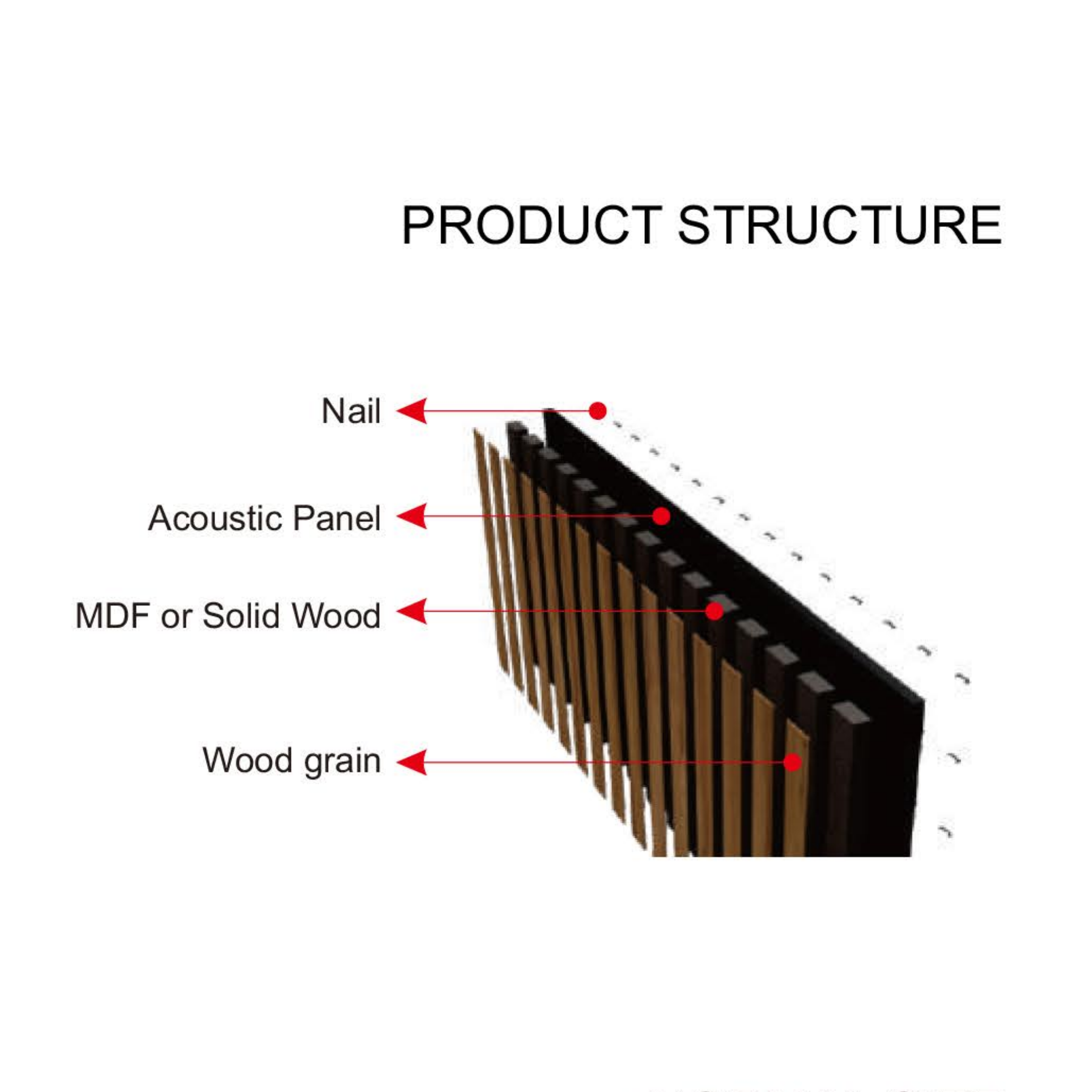

Decorative Layer: It is the top layer of the acoustic wall panel to show the colors and it can be made with different materials: technical wood veneer, natural wood veneer, PVC, film, HPL, leather, etc.
Eco-friendly slat: It is the core material of the acoustics wall panel The main material is MDF, color is black and Wood color. And solid Hardwood, Bamboo, PS, WPC and other materials also can be used.
High-density Acoustic Polyester Fiber(PET): It is an ideal product in sound absorption and heat insulation materials.. It has different density: 1350g/m,1700g/m and Different thickness: 6mm, 7mm, 8mm, 9mm, 10mm, etc. And Its common colors black but light grey, coffee and other colors also can be used. It also has the function to fix the wall panels.

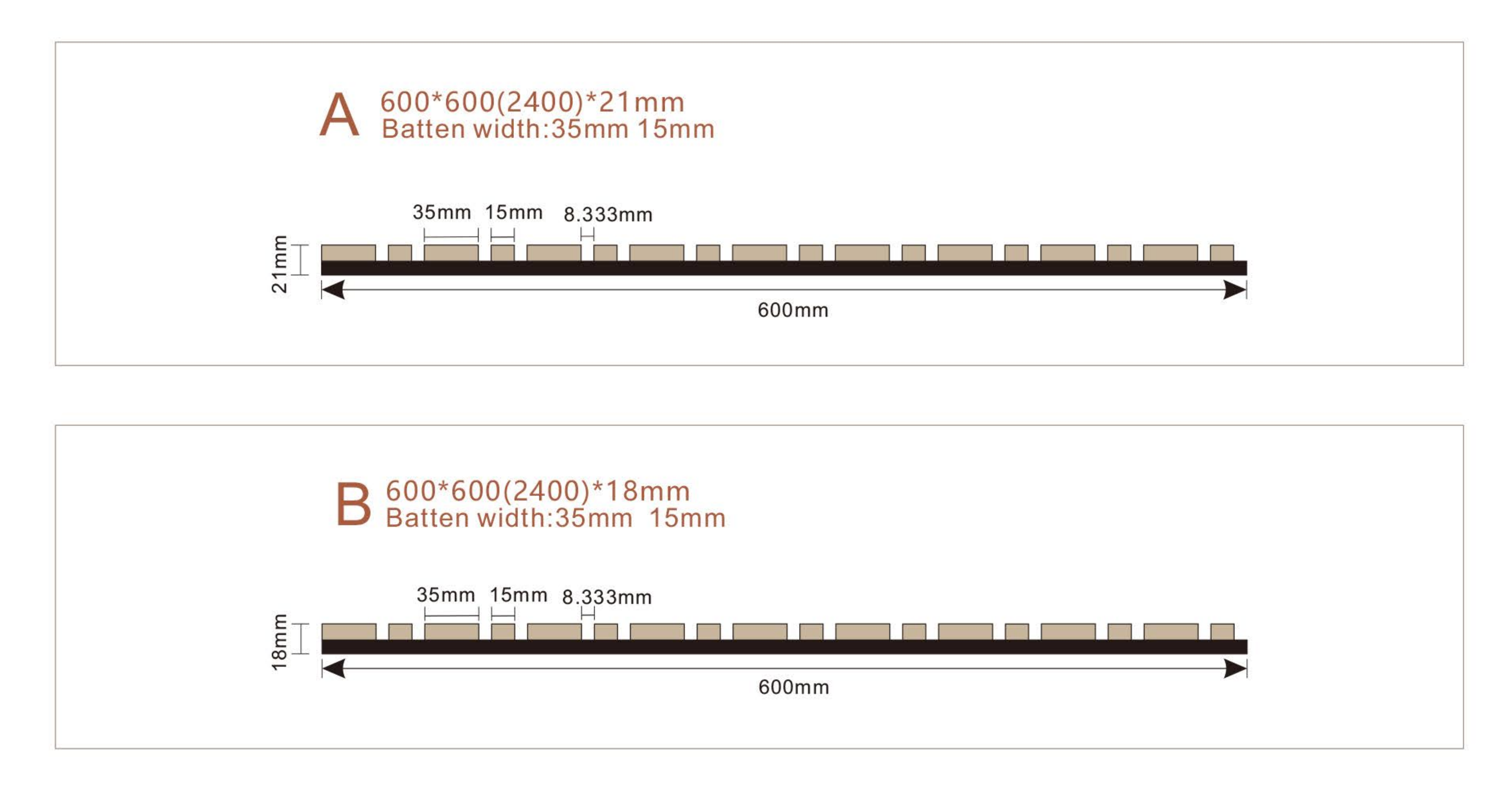

Large and Small Wooden Veneer Slat Width Acoustic Slat Panels Detailed drawings of Product Dimensions
Product Name | Polyester fiber acoustic panels |

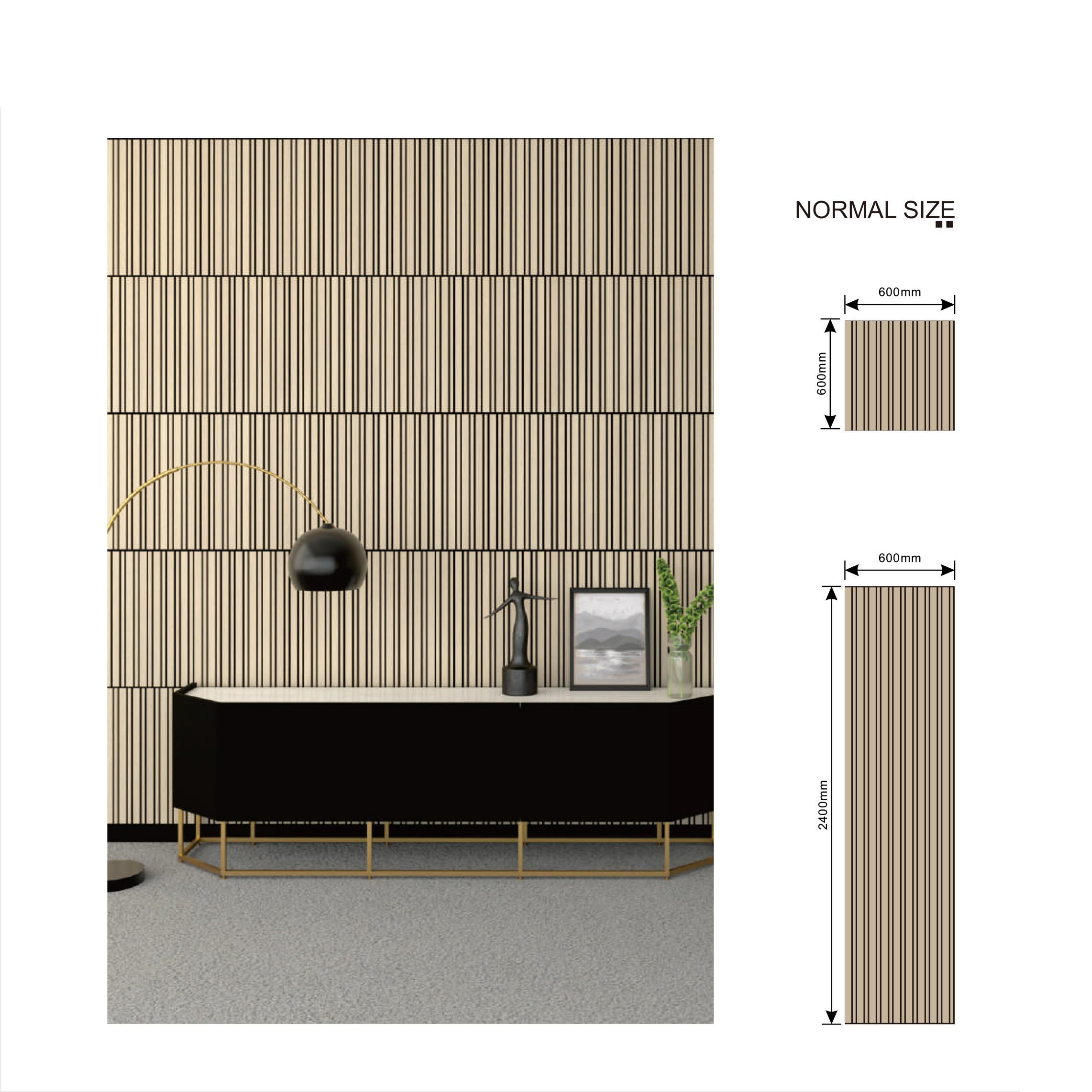

Panel Size | 600*600 mm /2400/ 2700/ 3000mm*600mm /Customizable |
Thickness | 9mm/ 10mm/ 12mm/ 18mm /21mm |
Material | Polyester fiber + MDF slats + Veneer covered |
Surface Finish | Melamine/ Varnished wood veneer/ Painting/ HPL |
Color | Technological veneer, natural veneer or pvc film, etc. |
Fire Rating | B1 / ASTM E84 |
Installation Method | Screws / Adhesive / Clips |
Acoustic slat panels catalog.pdf
✔Eco-friendly and formaldehyde-free (E0)
The product meets the E0 environmental protection standard and does not contain harmful substances such as formaldehyde and benzene. From raw materials to processing technology, it strictly follows environmental protection requirements. For example, polyester fiber sound-absorbing panels are extracted from petroleum, and there is no wastewater or exhaust gas emission during processing.
✔ Class B1 / ASTM E84 fire rating
It has a B1 fire rating, is certified by the national standard, and has passed the European and American SGS flame retardant tests. If you choose a flame retardant material, you only need to add 4 yuan per kilogram to the basic quotation.
✔ Moisture-proof and mildew-proof
Made of materials such as MDF and PET, it has good moisture-proof and mildew-proof properties and can adapt to different usage environments, especially suitable for sensitive places such as kindergartens and prisons.
1-Side Cover: The decorative/ first layer is usually just wrapped on the top of the salt. It is with the highest cost performance and it has strong sense of solid wood from the front.
3-Side Cover: The decorative/ first layer is usually wrapped on the 3 side of the salt and it looks same from the front and from the sides and thus it looks the same as solid wood which is integrated.
| Name | Technical Wood Veneer | Natural Wood Veneer | PVC Film | Melamine |
| 1-Side Cover | ✔ | ✔ | ✔ | ✔ |
| 3-Side Cover | ✔ | ✔ | ✔ |
Color Recommendation
European preferred white elephant and walnut are mainstream color cards, which can bring a fashionable and elegant style to the grille
Color recommendation: Color 4, Color 8, Color 12, Color 13
1. The difference between sound absorption and sound insulation
The surface of sound-absorbing materials is porous and soft, such as our polyester fiber sound-absorbing panels, which have an NRC sound absorption grade of 0.8 - 1.1 and can convert sound energy into heat energy; sound insulation materials mainly reduce the propagation of sound by reflecting sound.
2. Is the flame retardant grade optional?
Our products are not flame retardant by default. Flame retardant materials require an additional 4 yuan/kg. The flame retardant grade is national standard B1, and has passed the SGS flame retardant test (European and American standards).
3. Can small batches be customized?
MOQ
300 PET baseboards, any thickness can be customized, small quantity can be selected from the stock color.
Slatted sound-absorbing board: no minimum order for technology leather and solid wood leather on the color card; 400 pieces of PVC leather single color
| Product Name | Product Type | MOQ | Customization options | |
PET Acoustic Panels | - | 300 | thickness | Any thickness can be customize |
Acoustic Slat Panels | Technology veneer | No MOQ | - | Color cards available, no MOQ |
Acoustic Slat Panels | Natural veneer | No MOQ | - | Color cards available, no MOQ |
Acoustic Slat Panel | PVC film | 400 pcs/monochrome | - | MOQ is 400 pieces, single color |
✅ 10+ years manufacturing experience
✅ 100% Factory Pricing – No Middlemen
✅ Custom Designs OEM & ODM solutions Support
✅ Consistent Bulk Supply (Container-ready)
✅ Fire / Acoustic Certifications Available
✅ Export to 20+ Countries
✅ Full QC Before Shipment
Environmental protection level comparison | Sound absorption coefficient comparison | Customization flexibility comparison | The product is more stable | More cost-effective |
The environmental protection grade of our sound-absorbing wall panels is E0, while the conventional grade of our peers is E1. Our products are more environmentally friendly. | Our sound absorption coefficient is 0.8 - 1.1, while that of our peers is 0.6 - 0.8. Our sound absorption effect is more significant. | In terms of size, color, density, etc., Proluxe has greater customization flexibility and can better meet the diverse needs of customers. | Different wood Our sound-absorbing panels are made of odorless wood, such as pine, fir, walnut, oak, etc.) and will not produce odor over time. | Compared with the leading manufacturers in the industry, our sound-absorbing panels have more competitive prices with the same quality. |
